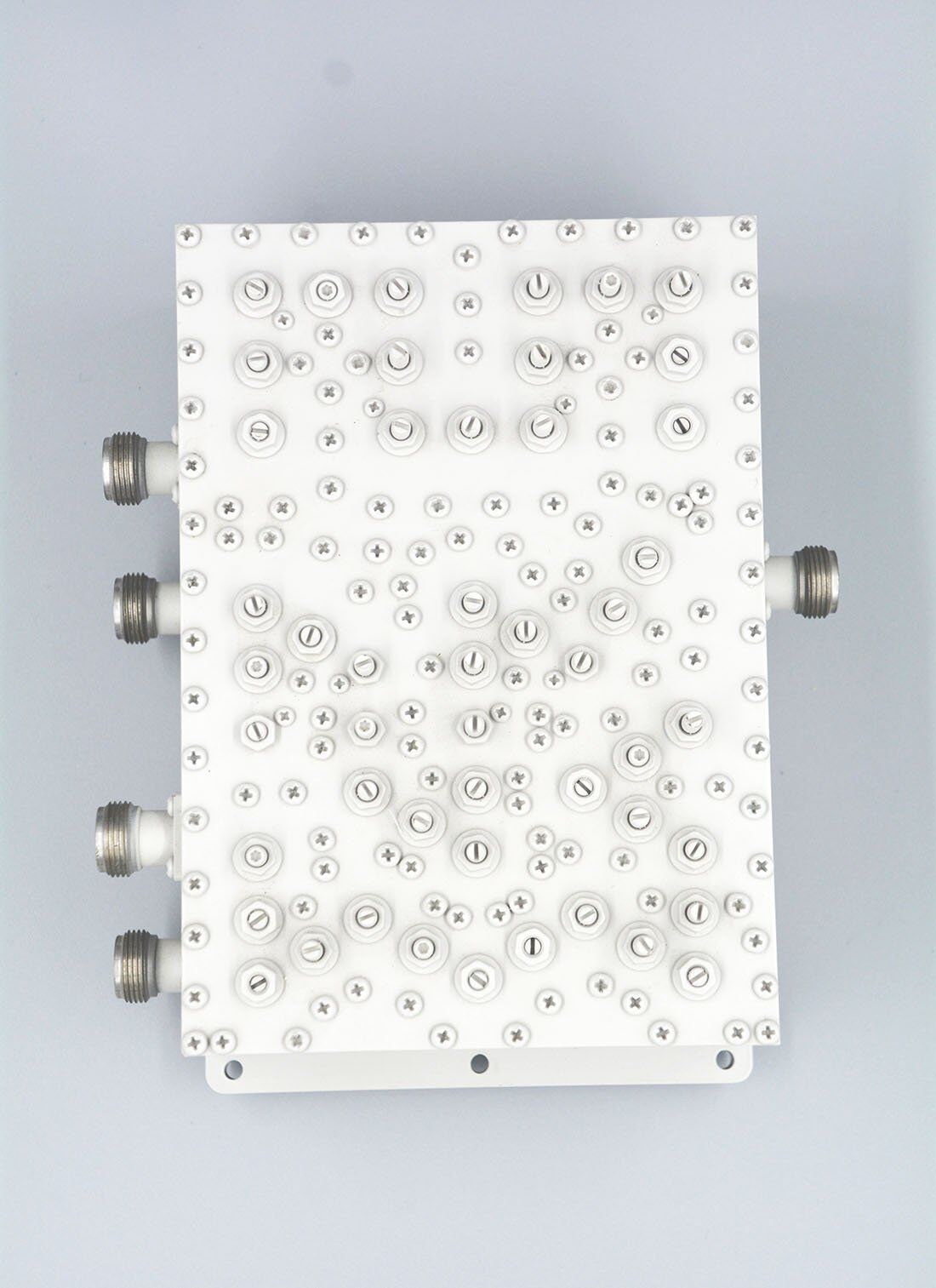

5-Path Band-pass Filter

Category RF Filter

This 5-path filter is designed to handle up to 500 watts ,with low insertion loss and high rejection.

All of our products are fully customizable, including difficult indicators and demanding environmental requirements

You could contact us by info1@raytheosmicrowave.com or zxx6786@gmail.com

Additional information

Frequency Range	2300-2400 MHz, Band1:825-880 MHz, Band2: 889-960 MHz, Band3: 1710-1880 MHz, Band4:1920-2170 MHz
Insertion Loss	Band1,2,3 ≤ 1.8dB, Band4,5 ≤ 0.8dB
Rejection	Isolation between:Band1,2,3 ≥ 60dB, others:≥ 80dB.
Power Handling	1000W Peak , 300W (Avg)
VSWR	≤ 1.4
Impedance	50 Ohm
RF connector	SMA – K

Frequency range (MHz): Band1 :825-880, Band2: 889-960, Band3:1710-1880,Band4:1920-2170, Band5:2300-2400

Insertion loss (dB): Band1,2,3 ≤ 1.8dB, Band4,5 ≤ 0.8dB

Pass Band Ripple (dB): Band1,2,3 ≤1.5dB,Band4,5 ≤0.5dB

Rejection (dB): Isolation between:Band1,2,3 ≥ 60dB, others:≥ 80dB.

Power Handling(W):1000W Peak , 300W (Avg)

VSWR: ≤1.4

Impedance: 50Ω

RF Connectors: N-K[1]

Operating Temperature (℃): -25~55℃

Other: ≥20dBc (43dBm*2) IM3 ;≥140dBc (43dBm*2) IM5;
