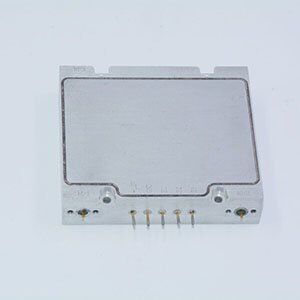

This product is designed to handle up to 5000 peak (1% duty cycle) ,with low insertion loss and high isolation.
All of our products are fully customizable, including high power and broadband design.
You could contact us by info1@raytheosmicrowave.com or zxx6786@gmail.com
| Switching Type | Reflective |
|---|---|
| Frequency Range | 960 ~ 1250 MHz |
| Isolation | 45 dB min |
| Impedance | 50 Ohm |
| VSWR | 1.3 Max |
| Insertion Loss | 0.6 dB Max |
| Switching time | 1us Max |
| Power Handling | (RF1 Port): 5000W peak (1% duty cycle), (RF2 Port): 500W peak (2% duty cycle) |
| Dimension | 68*60*15 mm |
Switching Type: Reflective
Frequency Range :960~ 1250 MHz
Isolation: 45 dB min
Impedance: 50 Ohm
VSWR: ≤ 1.3
Insertion Loss: ≤ 0.6 dB
Switching time: 1us Max
Power handling (RF1 Port): 5000W peak (1% duty cycle)
Power handling (RF2 Port): 500W peak (2% duty cycle)
Power & Control Connectors :∅0.8 Pin
RF connectors : ∅0.8 Pin
Dimensions: 68*60*15 mm
More details in Datasheet, Please download 3datasheet of 5000W Pin Diode Reflective Switch Bank(RYT-SWB-960-1250-5000W)
