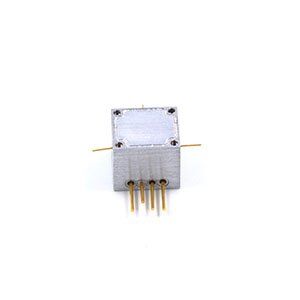

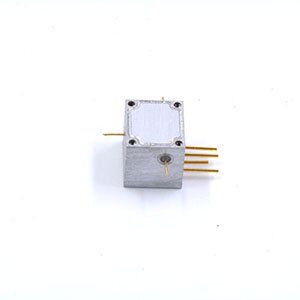

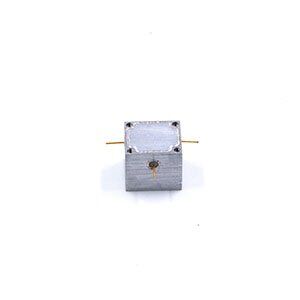

This product is designed to handle up to 800 watts peak (1 μsec pulse width; 2% duty cycle) ,with low insertion loss，high isolation and small size.
All of our products are fully customizable, including difficult indicators and demanding environmental requirements
You could contact us by info1@raytheosmicrowave.com or zxx6786@gmail.com
| Switching Type | Reflective |
|---|---|
| Frequency Range | 960 ~ 1250 MHz |
| Isolation | 23 dB min |
| Impedance | 50 Ohm |
| VSWR | 1.3 Max |
| Insertion Loss | 0.6 dB Max |
| Switching time | 1us Max |
| Power Handling | 800 watts peak (1 μsec pulse width; 2% duty cycle) |
| Surface Finish | Aluminum, Electric Conductive Oxidation (Natural colour) |
Switching Type:Reflective
Frequency Range: 960~ 1250 MHz
Isolation: 23 dB min
Impedance : 50 Ohm
VSWR: ≤ 1.3
Insertion Loss : ≤ 0.6 dB
Switching time: 1us Max
Power handling: 800 watts peak (1 μsec pulse width; 2% duty cycle)
Surface Treatment: Aluminum, Electric Conductive Oxidation (Natural colour)
Power & Control Connectors: ∅0.8 Pin
RF connectors: ∅0.5 Pin
More details in Datasheet, Please download 4datasheet of High Power SPDT Switch(RYT-HPSPDT-960-1250-800W)
