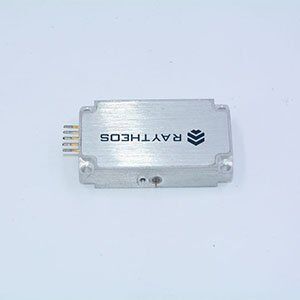

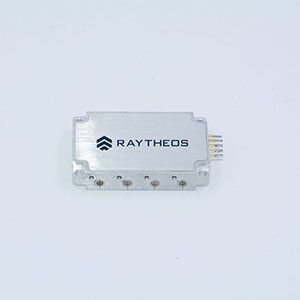

This SP4T switch , designed to handle up to 1500W peak, with these features:
All of our products are fully customizable, including difficult indicators and demanding environmental requirements.
You could contact us by info1@raytheosmicrowave.com or zxx6786@gmail.com.
Switching Type: Reflective
Frequency Range ): 960~ 1215 MHz
Isolation: 50dB min
Impedance: 50 Ohm
VSWR: ≤1.4
Insertion Loss :≤ 0.8 dB
Switching time:1us Max
Power handling:1500W peak (4% duty cycle)
Surface Treatment:Electric Conductive Oxidation (Natural colour)
Power & Control Connectors :∅0.8 Pin
RF connectors :∅0.5 Pin, SMA Removable
Dimensions : 50x30x10 mm
More details in Datasheet, Pleas download 2datasheet of SP4T Pin Diode Reflective Switch(RYT-SW-SP4T-960-1215M)
