Waveguide Band-pass Filter

Category

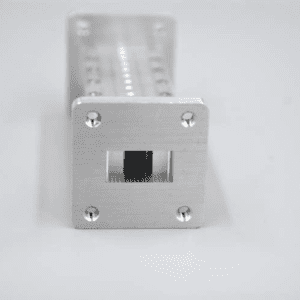

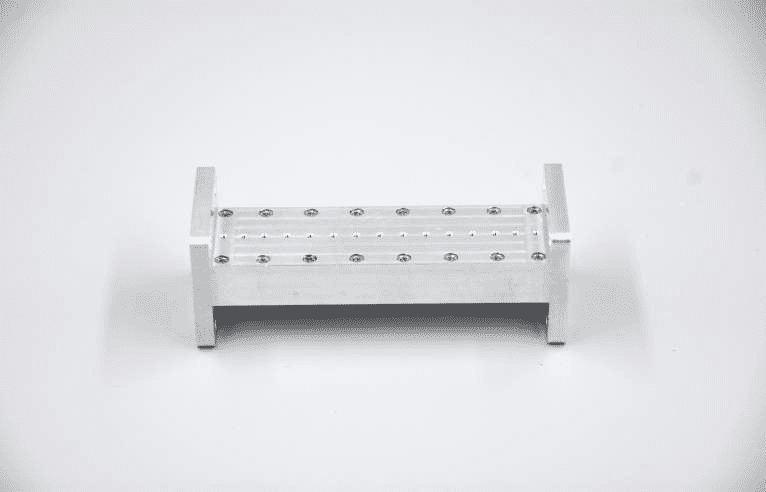

This cavity filter ,frequencies from 13.7 GHz to14.55 GHz ,offers excellent performance like low pass band ripple and high rejection.

All of our products are fully customizable, including difficult indicators and demanding environmental requirements.

You could contact us by info1@raytheosmicrowave.com or zxx6786@gmail.com

Additional information

Frequency Range

13.7 GHz~14.55 GHz

RF connector

BJ120

Insertion Loss

≤0.3 dB

Pass Band Ripple

≤±0.1 dB

Rejection

≥50dBc@1450~13700Mhz, ≥50dBc@15200~20000Mhz

VSWR

1.3 Max

Impedance

50 Ohm

Power Handling

200 W

Surface Finish

Silver Plated

Product Details:

Frequency range(MHz): 13700~14550

RF connectors: BJ120

Insertion loss (dB): ≤0.3

Pass Band Ripple : ≤±0.1 dB

Rejection: ≥50dBc@1450~13700Mhz

≥50dBc@15200~20000Mhz

VSWR: ≤1.3

Impedance: 50 Ω

Power Handling(W): 200

Surface Finish: Silver Plated

More details in Datasheet, please download 9datasheet of waveguaid band pass filter(RYTWGBPF13.7G-14.5G)
